- Local positioning system
- Product Description
- The Compass series is a small fundamental robot platform. It aims to provide users with a complete mobile robot system with high reliability and multiple interfaces. Compass Q2 is a robot platform with four 45 degrees QMA-10 omni wheels. Compared with the traditional gear train, the QMA-10 omni wheel is able to accomplish many special movements, like translation, rotation, and simultaneous translation & rotation.The chassis of this platform adopts overall aluminum casting & molding process. Compass Q2 uses four high-power coreless motors as the driver, equipped with four-axis servo driver, supporting both CAN bus and RS232 interface. The development kit provides customers with a complete equipment communication protocol, and also provides examples and demo application source code based on STM32F407, which allows users quickly know how to operate Compass Q2
- Feature
- Omni-directional moveSuspension systemIntegral molded chassis

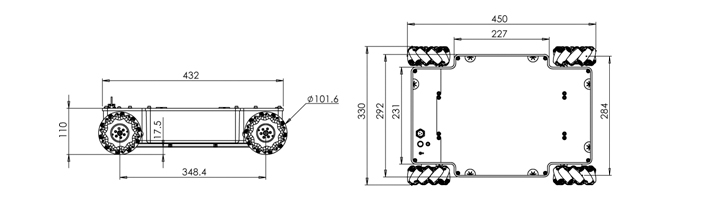

- dimension
- Detailed Images
body structure: aluminum alloy molding whole shape body structure: aluminum alloy molding whole shape dimension: 450×330×110mm dimension: 450×330×110mm Driving wheel: QMA-10 Omniwheel diameter 101.6mm Driving wheel: QMA-10 Omniwheel diameter 101.6mm Maximum rotation speed: 225°/s Maximum rotation speed: 225°/s Adaptive topography: indoor,bituminous ground ,concrete ground with little depression Adaptive topography indoor,bituminous ground ,concrete ground with little depression
- Main parts
- Omniwheel
- QMA-10 Industrial Omni wheel, is the HANGFA company classic series Omni-directional wheels...Details
- Omniwheel
- QMA-10 Industrial Omni wheel, is the HANGFA company classic series Omni-directional wheels...Details
- Omniwheel
- QMA-10 Industrial Omni wheel, is the HANGFA company classic series Omni-directional wheels...Details
- Display
-
AccessariesAccessariesAccessariesAccessaries - Research directions
- Handling and storageEmbedded systemsPattern recognitionHandling and storageEmbedded systemsPattern recognitionHandling and storageEmbedded systemsPattern recognition
- Optional accessoriesmore...
- Handling and storageEmbedded systemsPattern recognitionHandling and storageEmbedded systemsPattern recognitionHandling and storageEmbedded systemsPattern recognition
- Download
- Navigator Q1manualNavigator Q1manual
