- ULB-1
- Product Description
- ULB-1 Sending and receiving separated probe, to range within 1cm~6m distance of objects. With i2C bus, UART (TTL-level) two data Interface, and comes standard with mounting bracket.
- Feature
- Industrial grade qualitySmall blind regionI2C bus, and UART (TTL-level) two types of data InterfaceSupports up to 32 sensors modules via a bus the cascade

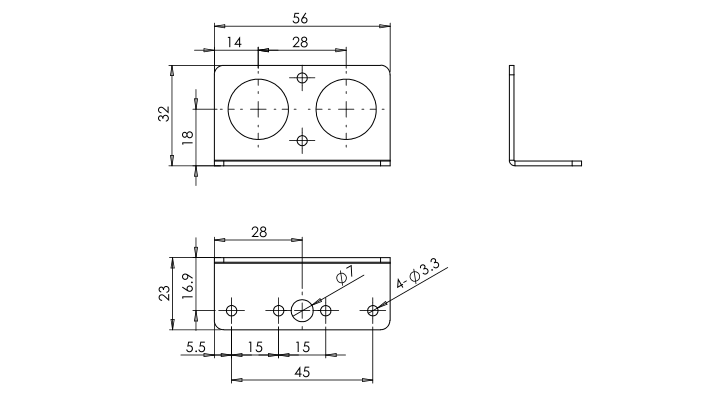

- dimension

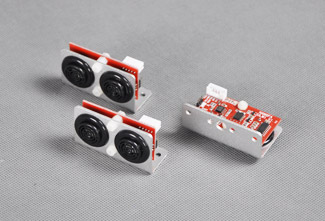

- Detailed Images
body structure： 56×28×32mm Range： 0.01~6m Each probe maximum range frequency： 50Hz Sensor type： Sending and receiving separated Communication Interface： I2C, UART serial (TTL-level) Input voltage： DC5V Typical standby current： 30mA Typical operating current： 600mA Main parts： Module X1, mortise mounting bracket X1, Terminal X10, CDx1
- Display
-
ULB-1 - Typical areas of application
- RobotIndustrial Automation
- Download
- ULB-1.pdf
