- HMC-1 remote control handle
- Product Description
- Pathfinder remote control integrates a wide range of control devices, wireless and wired communications, wireless remote control that is farthest distances up to 300 meters. Using the remote control of industrial-grade components, and is equipped with a LCD panel data, users can open communication protocol implementations for various applications.
- Feature
- Open, simple and easy communication protocolWireless and wired communications compatibleIndustrial grade componentsRich manipulation devices

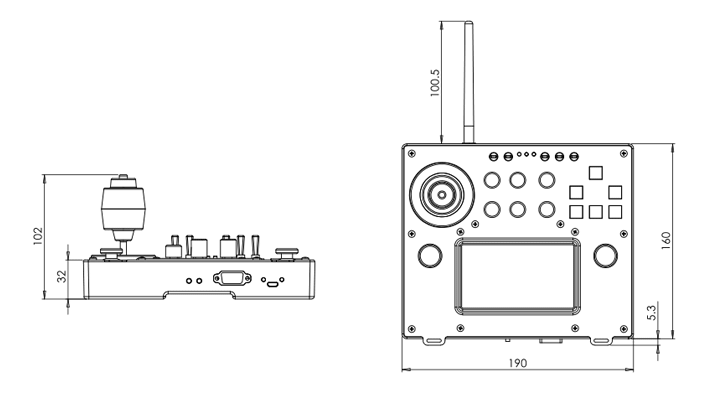

- dimension
- Detailed Images
body structure： 190×160×102mm Distance wireless communication reference： 300m（Open space）/100m（Indoor shop space） Wired communication distance reference： 10m Wireless transceiver modules Communication Interface： RS232/TTL/USB Wired Communication Interface： RS232 Wireless communication baud rate： 4800/9600/19200 Wired communication baud rate： 4800/9600/19200/38400/57600/115200 Data update rate： 1~150Hz（Wired）/1~50Hz（Wireless） Rocker： 1個（X、Y、Z、D Axis） Small rocker： 2個（X、Y、D Axis） Rotary potentiometers： 2個 Rotating band switch： 2個×6檔 Rotary encoder： 2個 Toggle switch： 5個×2Document Push button switch： 6個 Typical full time： 12h(Brightness of the LCD screen is set to the highest） Typical recharge time: 3h Chargers Input voltage： AC100V~240V Annex： Wireless transceiver modules×1、Charging adapter×1、Charging cable×1、Shoulder strap×1、CD×1
- Display
-

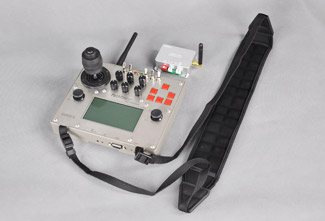

Realistic picture

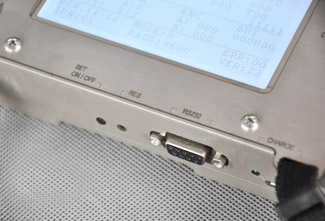

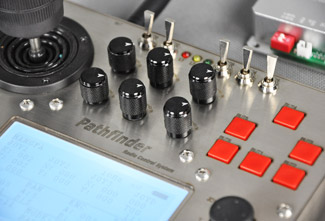

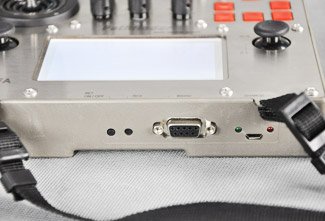

Detailed picture
Detailed picture
Detailed picture - Typical areas of application
- RobotIndustrial Automation
- Download
- HMC-1 remote control handle.pdf
