| Product |  CL-10 |
 CL-13 |
| Diameter(mm) | 101.6（4"） | 127（5"） |
| Wide(mm) | 39 | 39 |
| Wheels | 16 | 20 |
| Bearing | 32 | 40 |
| Bearing Type | Nylon Sliding Bearing | |
| Wheel Material | Rubber | |
| Hub Material | Carbon Steel | |
| Hub Surface Treatment | Electro-galvanized | |
| Mount | Flat key/Hexagon Hole/Set Screws/Bearing supports | |
| Typical Middle Hole Size(mm) | 5/6/7/8/9/10/12 | |
| Weight(g) | 430 | 730 |
| Load(kg) | 50 | 50 |
- high economy

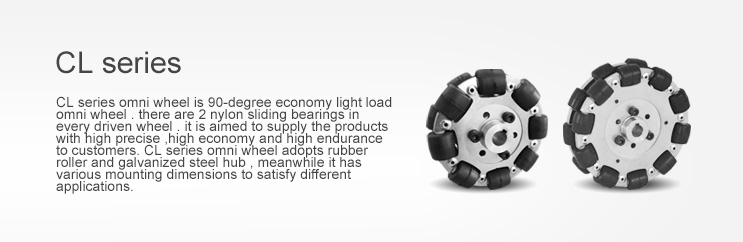

- CL series omni wheel have better quality and economical benefit, it can adapt wild application because of its cost-effectiveness.
- steel hub
- Self weight is a little heavy , but it has better intensity and resilience.。
- reliable, long lifetime, stable quality
