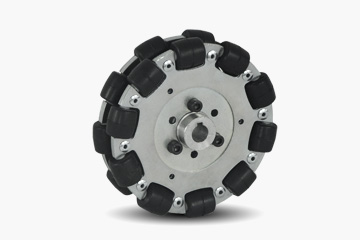

- CL-13 Omni Wheel
- Product Description
- CL series omni wheel is 90-degree economy light load omni wheel . there are 2 nylon sliding bearings in every driven wheel . it is aimed to supply the products with high precise ,high economy and high endurance to customers. CL series omni wheel adopts rubber roller and galvanized steel hub , meanwhile it has various mounting dimensions to satisfy different applications.
- Feature
- high economy steel hubstrong load capacityreliable, long lifetime, stable quality

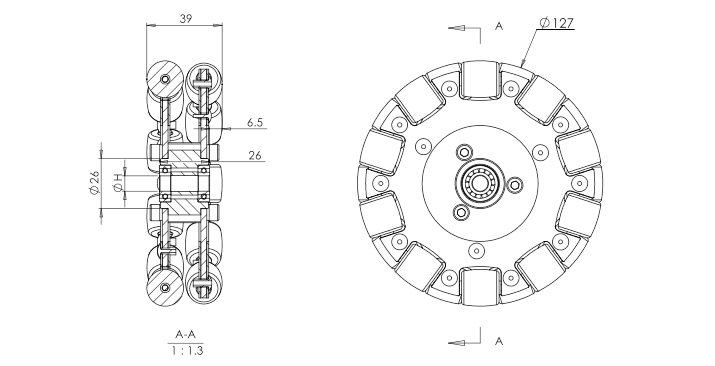

- Dimension
- Detailed Images
Diameter: 127（5"）mm Wide: 39mm Wheels: 20 Bearing: 40 Bearing Type: Nylon Sliding Bearing Wheel Material: Rubber Hub Material: Carbon Steel Hub Surface Treatment: Electro-galvanized Mount: Flat key/Hexagon Hole/Set Screws/Bearing supports Typical Middle Hole Size: 5/6/7/8/9/10/12mm Weight: 730g Load: 50Kg

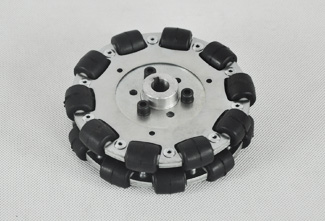

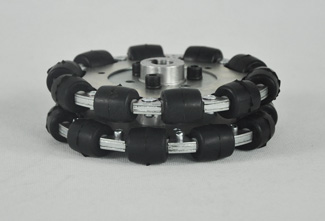

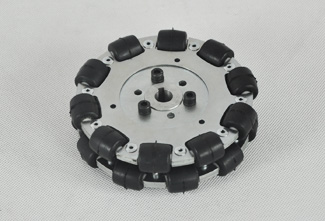

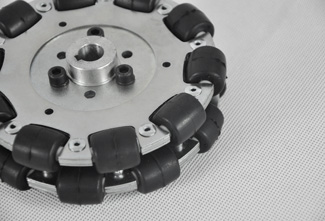

- Display
-
Realistic picture
Realistic picture
Realistic picture
Detailed picture - Document download
- CL-13CN.pdf
