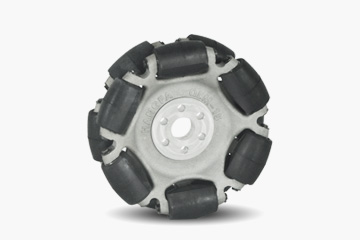

- QLM15 Omni Wheel
- Product Description
- The maximum load of QLM series omni wheel is 2000KG, and the wheel maintains a high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. The driven wheel material can be rubber or polyurethane according to customers’ requirements. QLM series omni wheel use ball bearing design with good performance in stability ,quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-2000KGindustrial-grade quality

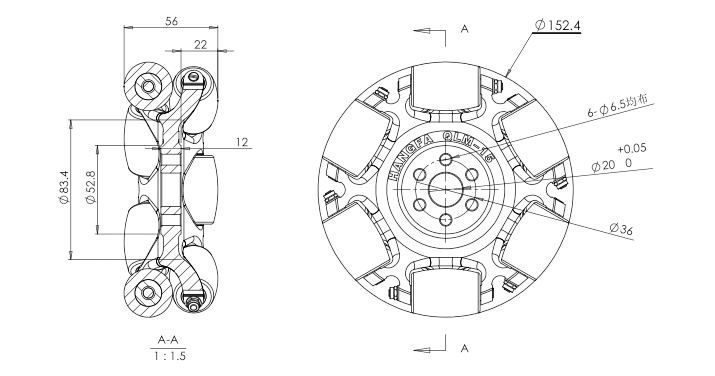

- Dimension
- Detailed Images
Diameter: 152.4（6"）mm Wide: 56mm Wheels: 12 Bearing: 24 Bearing Type: Rolling Bearing Wheel Material: Rubber/Polyurethane/Aluminum Hub Material: Aluminum Hub Surface Treatment: No Treatment Mount: Flange Typical Middle Hole Size: 20mm Weight: 0.94Kg Load: 50Kg
- Display
-

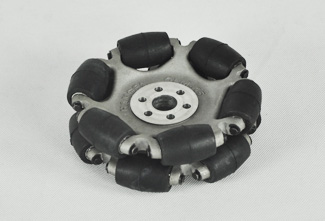

Realistic picture

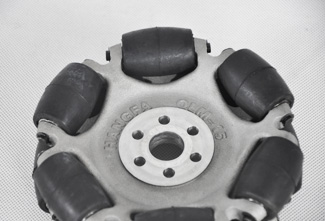

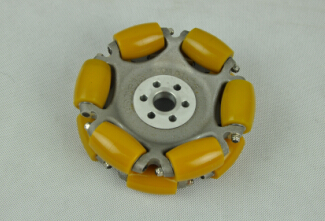

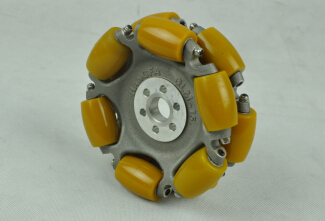

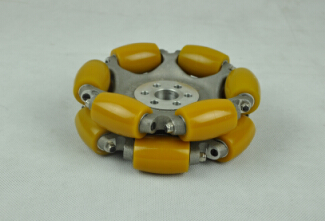

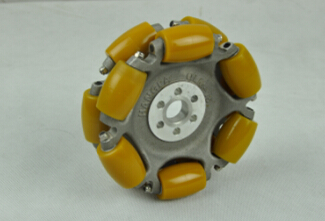

Detailed picture
Detailed picture
Detailed picture
Detailed picture
Detailed picture - Document download
- QLM-15CN.pdf
