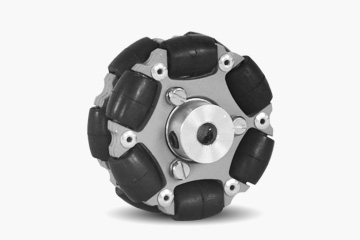

- QL-05 Omni Wheel
- Product Description
- QL series omni wheel is 90-degree precise light load omni wheel . there are 2 ball bearings in every driven wheel . it is aimed to supply products with high precise and high quality to satisfy customers’ various applications . QL series omni wheel has achieved zero clearance in axial direction of driven wheel with steady improvement, particularly suitable for different small robots.
- Feature
- zero clearance in axial direction of driven wheelDouble Multi-subdivision design2 bearings embedded in every driven wheelhigh quality rubberhigh-temperature painting technologysteadly improving Ql series omni wheel

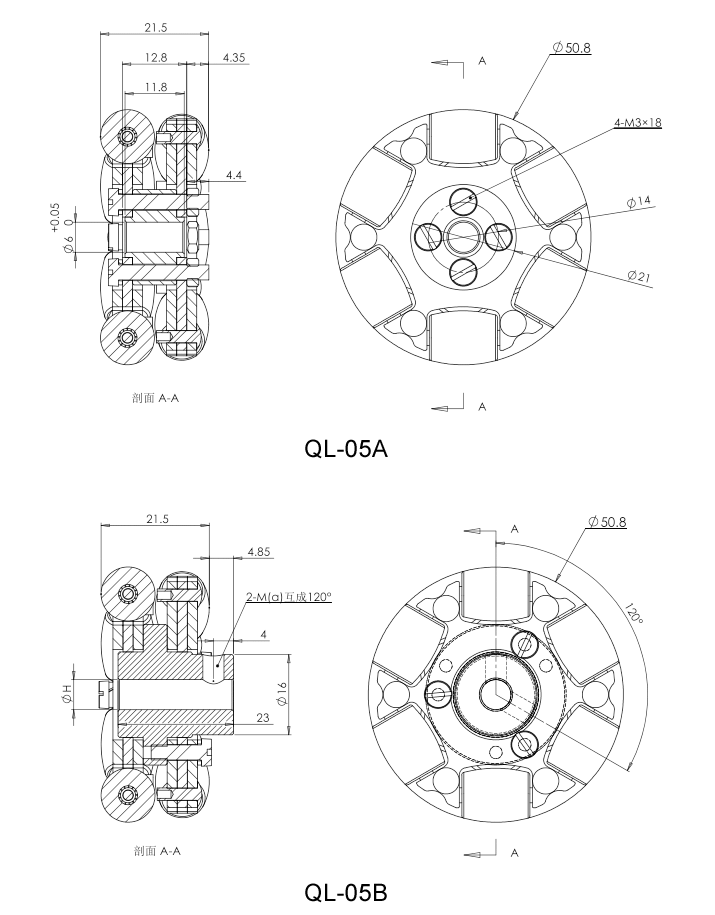

- Dimension
- Detailed Images
Diameter: 50.8(2"）mm Wide: 21.5mm Wheels: 12 Bearing: 24 Bearing Type: Rolling Bearing Wheel Material: Rubber Hub Material: Aluminum Hub Surface Treatment: High-Temperature Painting Mount: Flange/Set Screws Typical Middle Hole Size: 4/5/6/8mm Weight: 70/75g Load: 5Kg
- Display
-

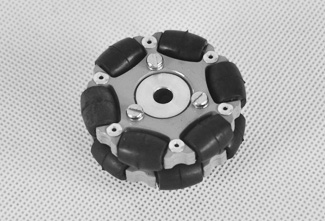

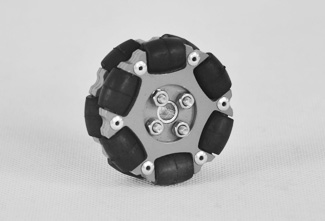

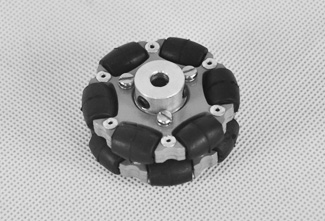

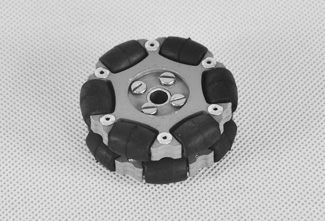

Realistic picture
Realistic picture
Realistic picture
Realistic picture - Document download
- QL-05ACN.pdfQL-05BCN.pdf
