| Product | CMA-15 |
CMA-20 |
CMA-20A |
CMA-25 |
CMA-31 |
CMA-36 |
CMA-40 |
CMA-45 |
CMA-50 |
CMA-58 |
CMA-66 |
| Diameter(mm) | 156.5 | 203.2（8"） | 203.2 | 254(10") | 310 | 360 | 406.4（16"） | 457.2 | 508 | 584.2 | 660.4 |
| Wide(mm) | 84 | 75 | 110 | 136 | 167 | 193 | 218 | 246 | 274 | 315 | 349 |
| Wheels | 8 | 12 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Bearing Type | Rolling Bearing | Heavy Duty Rolling Bearing | Rolling Bearing | Heavy Duty Rolling Bearing | Rolling Bearing | ||||||
| Wheel Material | Polyurethane | ||||||||||
| Hub Material | Aluminum | Steel | carbon steel | Steel | carbon steel | ||||||
| Hub Surface Treatment | No Treatment | High-Temperature Painting | |||||||||
| Mount | Flange | ||||||||||
| Flange Plate Thinckness(mm) | 12 | 13 | 13 | 10 | 12 | 14 | 16 | 17 | 19 | 21 | 21 |
| Flange Plate Diameter(mm) | 52 | 53.5 | 80 | 100 | 126 | 146 | 160 | 189 | 228.4 | 240 | 254 |
| Flange Cavity Inner diameter(mm) | 73.3 | 124 | 120 | 124 | 149 | 175 | 194.7 | 221 | 246.7 | 284 | 332 |
| Typical Middle Hole Size(mm) | 20 | 20 | 45 | 50 | 60 | 70 | 70 | 110 | 130 | 150 | 170 |
| Weight(kg) | 2.1 | 3.2 | 6 | 15 | 21 | 31 | 65 | 62 | 98.9 | 150 | 300 |
| Load(kg) | 100 | 80 | 240 | 400 | 650 | 1100 | 1600 | 1900 | 2300 | 3100 | 4500 |

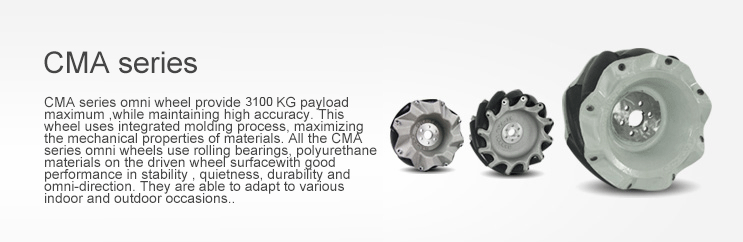

- integrated molding process hub , high intensity ,high stiffness
- This wheel uses integrated molding process, maximizing the mechanical properties of materials integrated molding process hub , high intensity ,high stiffness, reliable and long lifetime durable .
- Rolling Bearing
- Compared to sliding bearings and no bearings structure ,CMA series omni wheel use rolling bearing design . (to achieve ) It’s little friction, high precision ,high reliability ,convenient fix and it can be suitable for the continuous use .
- payload between 4500KG
- this series can load 4500KG maximum 。
- industrial-grade quality
- design and manufacture in accordance with industry standard。
