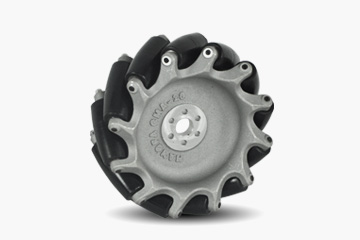

- CMA-20 Omni Wheel
- Product Description
- CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- Integrated molding process hub, High intensity, High stiffnessRolling BearingPayload between 0-4500KGIndustrial-grade quality

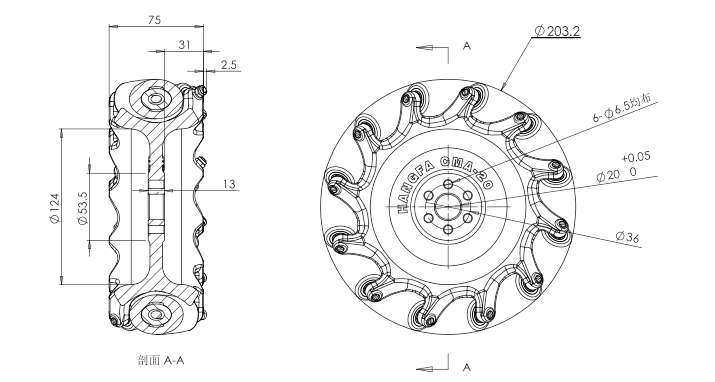

- Dimension
- Detailed Images
Diameter: 203.2（8"）mm Wide: 75mm Wheels: 12 Bearing Type: Rolling Bearing Wheel Material: Polyurethane Hub Material: Aluminum Hub Surface Treatment: No Treatment Mount: Flange Flange Plate Thinckness: 13mm Flange Plate Diameter: 53.5mm Flange Cavity Inner diameter: 124mm Typical Middle Hole Size: 20mm Weight: 3.2Kg Load: 80Kg
- Display
-

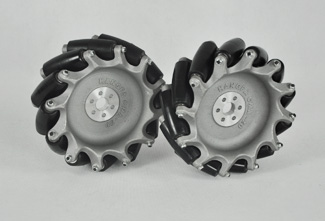

Realistic picture

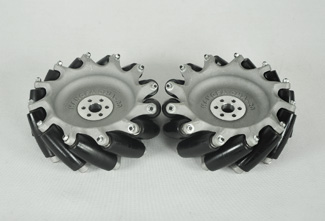

Realistic picture

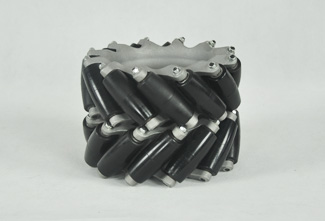

Realistic picture

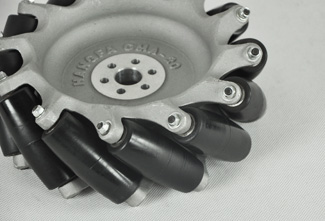

Detailed picture - Document download
- CMA-20CN.pdf
