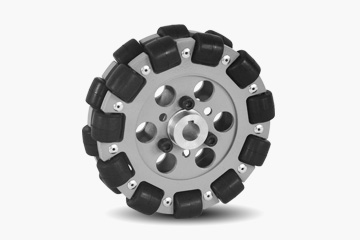

- QL-13 Omni Wheel
- Product Description
- QL series omni wheel is 90-degree precise light load omni wheel . there are 2 ball bearings in every driven wheel . it is aimed to supply products with high precise and high quality to satisfy customers’ various applications . QL series omni wheel has achieved zero clearance in axial direction of driven wheel with steady improvement, particularly suitable for different small robots.
- Feature
- zero clearance in axial direction of driven wheelDouble Multi-subdivision design2 bearings embedded in every driven wheelhigh quality rubberhigh-temperature painting technologysteadly improving Ql series omni wheel

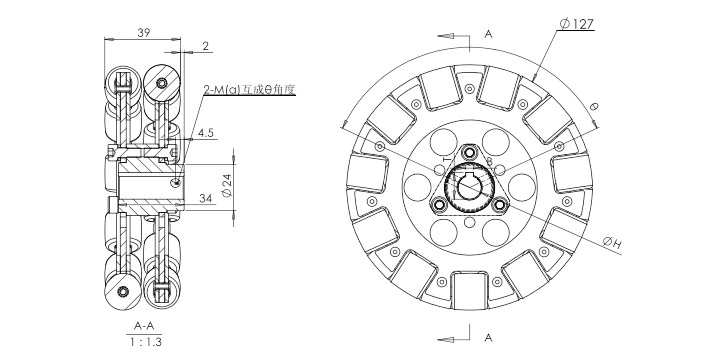

- Dimension
- Detailed Images
Diameter: 127（5"）mm Wide: 39mm Wheels: 22 Bearing: 44 Bearing Type: Rolling Bearing Wheel Material: Rubber Hub Material: Aluminum Hub Surface Treatment: High-Temperature Painting Mount: Flat key/Set Screws Typical Middle Hole Size: 5/6/8/10/12/15/16mm Weight: 445g Load: 30Kg
- Display
-

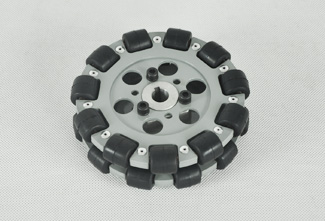

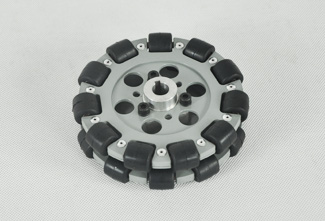

Realistic picture
Realistic picture
Realistic picture

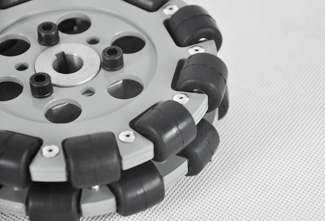

Detailed picture - Document download
- QL-13CN.pdf
