- CMA-20A Omni Wheel
- Product Description
- CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

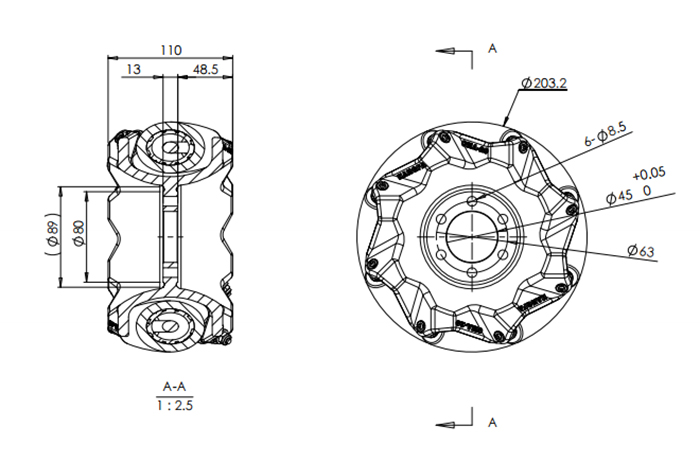

- Dimension
- Detailed Images
-
Diameter: 203.2mm Wide: 110mm Wheels: 8 Bearing Type: Rolling Bearing Load: 240Kg Hub Material: Aluminum Flange Screw: 6-M8Hub Bolt Screw Pitch Circle Diameter: 63mm Flange Plate Thinckness: 13mm Flange Plate Diameter: 80mm Flange Cavity Inner diameter: 89mm Typical Middle Hole Size: 45mm Weight: 6Kg
- Display
-

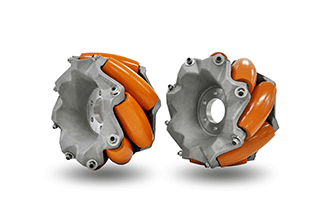

Realistic picture

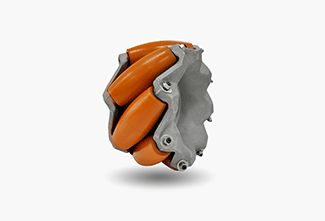

Realistic picture

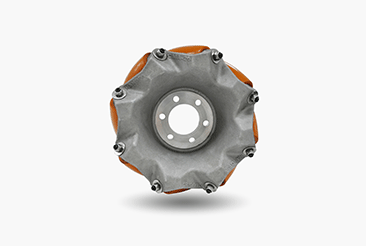

Realistic picture

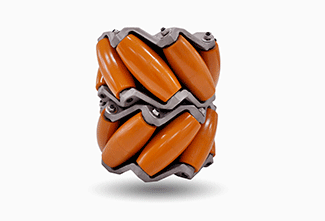

Detailed picture - Document download
- CMA20A-EN.pdf
