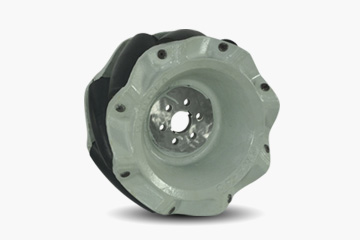

- CMA-40 Omni Wheel
- Product Description
- CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

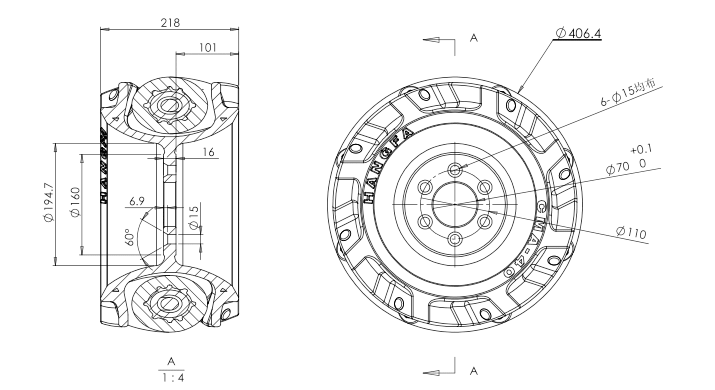

- Dimension
- Detailed Images
Diameter: 406.4mm Wide: 219mm Wheels: 8 Bearing Type: heavy duty Rolling Bearing Wheel Material: Polyurethane Hub Material: steel Hub Surface Treatment: High-Temperature Painting Mount: Flange Flange Plate Thinckness: 16mm Flange Plate Diameter: 160mm Flange Cavity Inner diameter: 177mm Typical Middle Hole Size: 70mm Weight: 53Kg Load: 1600Kg
- Display
-

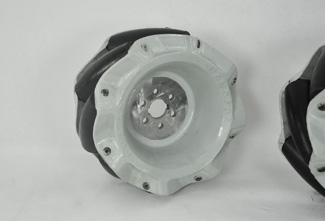

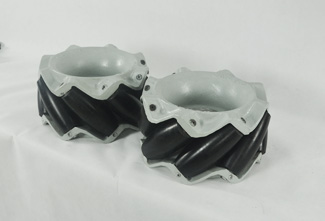

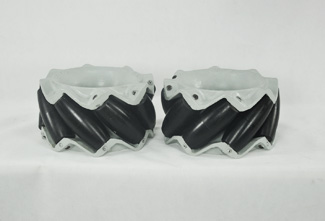

Realistic picture
Realistic picture
Realistic picture
Realistic picture - Document download
- CMA40-EN.pdf
