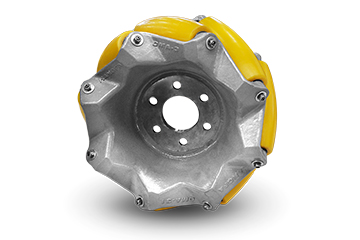

- CMA-31 Omni Wheel
- Product Description
- CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality
- Dimension
- Detailed Images
-
Diameter: 310mm Wide: 167mm Wheels: 8 Bearing Type: Heavy Duty Rolling Bearing Hub Material: Steel Weight: 21Kg Screw Pitch Circle Diameter: 95mm Flange Screw: 6-M12*1.5 Hub Bolt Flange Plate Thinckness: 12mm Flange Plate Diameter: 126mm Flange Cavity Inner diameter: 145mm Typical Middle Hole Size: 60mm Hub Surface Treatment: High-Temperature Painting Load: 650Kg
- Display
-

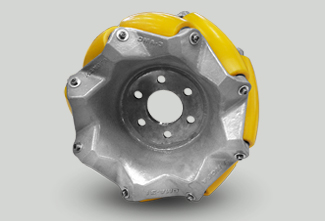

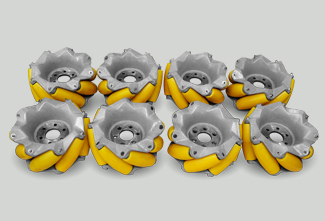

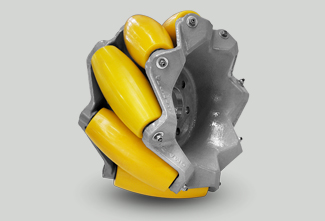

Realistic picture
Realistic picture
Realistic picture

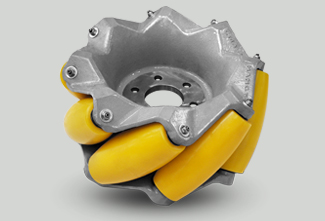

Detailed picture - Document download
- CMA31-EN.pdf
