- CMA-25 Omni Wheel
- Product Description
- CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

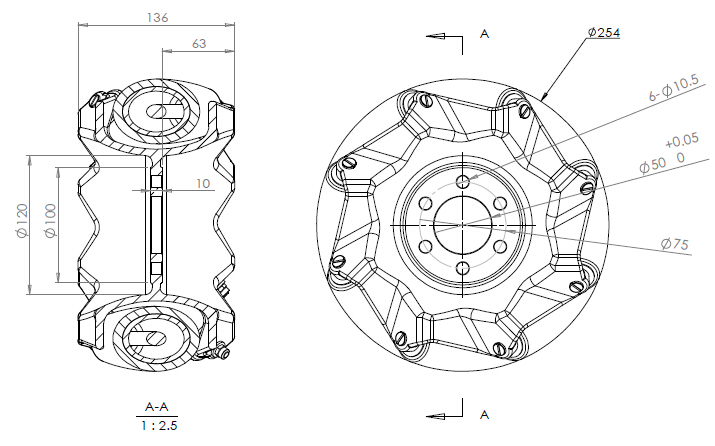

- Dimension
- Detailed Images
-
Diameter: 254mm Wide: 135mm Wheels: 8 Bearing Type: Heavy Duty Rolling Bearing Wheel Material: Polyurethane Hub Material: Steel Hub Surface Treatment: High-Temperature Painting Mount: Flange Flange Plate Thinckness: 10mm Flange Plate Diameter: 100mm Flange Cavity Inner diameter: 114mm Typical Middle Hole Size: 50mm Weight: 12.5Kg Load: 400Kg
- Display
-

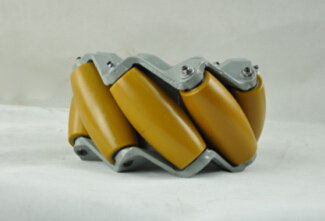

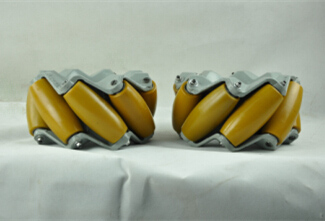

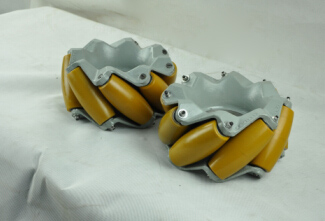

Realistic picture
Realistic picture
Realistic picture

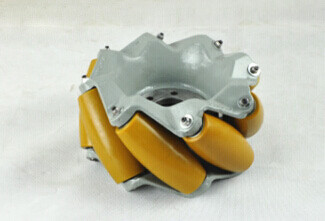

Detailed picture - Document download
- CMA25-EN.pdf
